Wheelchair Lifts from Trus-T-Lift and Macs lift
Residential Wheelchair Lifts from Mobility 4 America make your home accessible to those who have trouble with steps and inclines. We have Wheelchair lifts for indoor and outdoor installation for residential and commercial use. Wheelchair Lifts that can travel from a height of 28” to 168”. Portable Wheelchair Lifts for churches, schools, theaters or any event. We have Wheelchair Lifts from Trust-T-Lift, Macs Lift and many other top manufacturers. With 18 years experience we will work with you to find the right wheelchair lift for your needs. Call us at 800-320-8725
Portable Model
Basic Model
Basic with Upper Gate
Commercial Model
Enclosed Model
Portable Lifts
Portable Lifts can be used for schools, theatres,
or churches to make access available to everyone
Lightweight and easy to transport

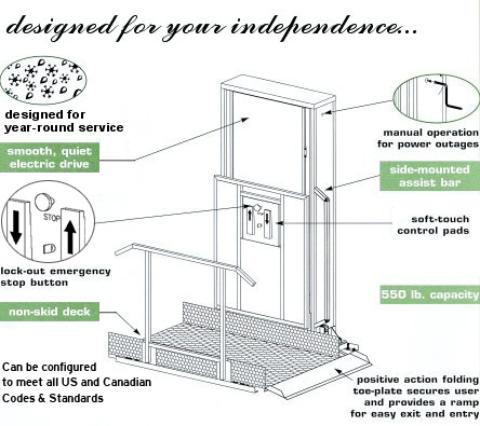

Trus-T-Lift 5200
KEY FEATURES
Zero-Load Start Design
RAM’s patented zero-load start design protects the Trus-T-Lift motor during extreme cold and heat for immediate start-up in any weather.
Soft Touch Paddle
The patented RAM Soft Touch Paddle controls are oversized and responsive, allowing users to get moving with ease.
Total Customization
Customize your Trus-T-Lift’s colours, trim, doors/gate, handrails and more. The lift can also be modified to accommodate three-stops and atypical platform sizes.
Easy to Install
The Trus-T-Lift comes together in three simple parts and can be assembled quickly with minimum site preparation.
All-Electric Drive System
RAM’s field-proven electric drive system is reliable, powerful and whisper-quiet. Plus, no hydraulic fluid = no harsh smells.
= RAM Advantage, an essential feature found in all of our products.
*Technical
Constant pressure Soft Touch control pads
750 pound lift capacity
Constant pressure Soft Touch control pads
8 feet/minute lift speed
Direct worm gear/acme screw drive
Non-load-bearing backup safety nut on lift shaft
Low maintenance
Expanded metal platform with full under platform visibility and non skid surface
8" positive action, reversible toe-plate for universal access
Emergency manual operation
Fuse box accessible from carriage
Quick and easy set-up and adjustment
Baked on Powder Coat finish
Extreme Weather resistant design
U.L. and C.S.A. Certified
110 Volt - 15 Amps
Options
Under platform safety plate and solid platform
Carriage gate
Landing gates
Portable model
Solid Hand Rail
RAM Tower of Power full battery backup - allows for regular use of the lift, providing an unmatched 40 lift cycles on reserve power
18" extra wide toe plate
Remote call stations
Electric Interlocks
Solid end wall
Full size landing door
Technical Specifications
Click for Commercial Lifts and ADA compliant lifts

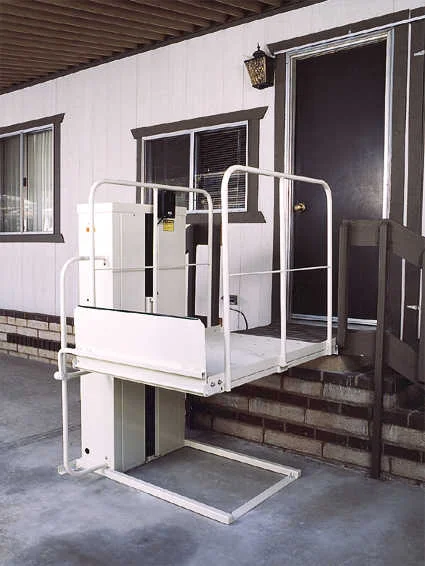

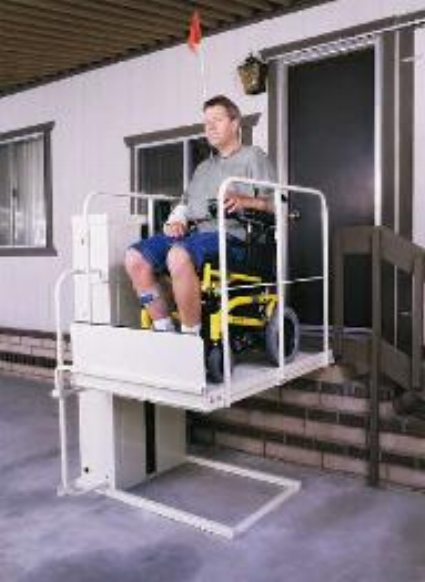

The MAC's Vertical Home Lift was designed and engineered for home use. It's easy to operate easy to install and virtually maintenance free. Every safety detail has been carefully designed into the PL-50 and PL-72, including a non-slip platform, constant pressure switches, a low platform for easy roll-on/roll-off, safety barrier and railing, and rolled edges.
The PL-50 and PL-72 are sturdy enough to lift and lower up to 600 pounds and will accommodate electric wheelchairs and scooters. Running on a gear box and chain, the PL-50 and PL-72 provide a smooth and quiet up and down ride, requiring little maintenance. All mechanics are fully enclosed, yet easy to access through the rear or front of the housing unit. The lifts are completely weatherized and attractively finished in off-white. Shipped fully assembled, the PL-50 and PL-72 install in 6 easy steps. The Mac's Vertical Home Lifts are the economical and practical answer to stair barriers.
Quality Assurance Manufacturing
A company with not less the thirty eight (38) years of experience in the design, fabrication and installation of specialized lifting equipment for handicapped and geriatric consumers should supply the lift.
Performance Requirements
The unit shall be assembled and prewired (less optional equipment and necessary gates) and manufactured with
adequate lifting and load capacity for application described elsewhere in this specification.
The unit shall be easy to operate by the user or attendant and shall be capable of functioning in all weather conditions.
The unit shall have the capacity to lift up to 500 lbs. to the desired lifting height up to a maximum lift height of
six ( 6 ) feet.
